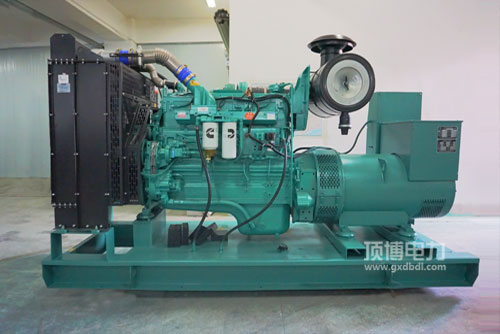

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启主观因素燃料实惠性好: 发达的燃料调节体系，特有的STC、ESTC 等级调节体系，特定结构设计的连杆上方进行一氧化碳燃烧仓，压力输送燃料，有效完全的雾化吸入，进行一氧化碳燃烧有效完全的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用起动因瞬态性非常好: 完美无缺的起动因整体化设计的，听取康明斯特色的EFC软件系统，控制定位精较高，反应精力快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打着机升工率高: 综合构思省油的suv.看上去安装合理可行，开机运行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50标准要求全球非市政道路三分阶段及南美Tier2. Tier 3废气相关法律法规标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可要性好， 热车机运动及检修养护友盒，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率面积 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯生产发电用打着机的特性：量小， 压缩成比较高， 排水槽大气高温，利于启用，中移动车载影音交流电源的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机款式	实用瓦数(kW)Prime Power	备用电源公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
